Resistance Measurements

How does a standard measurement work?

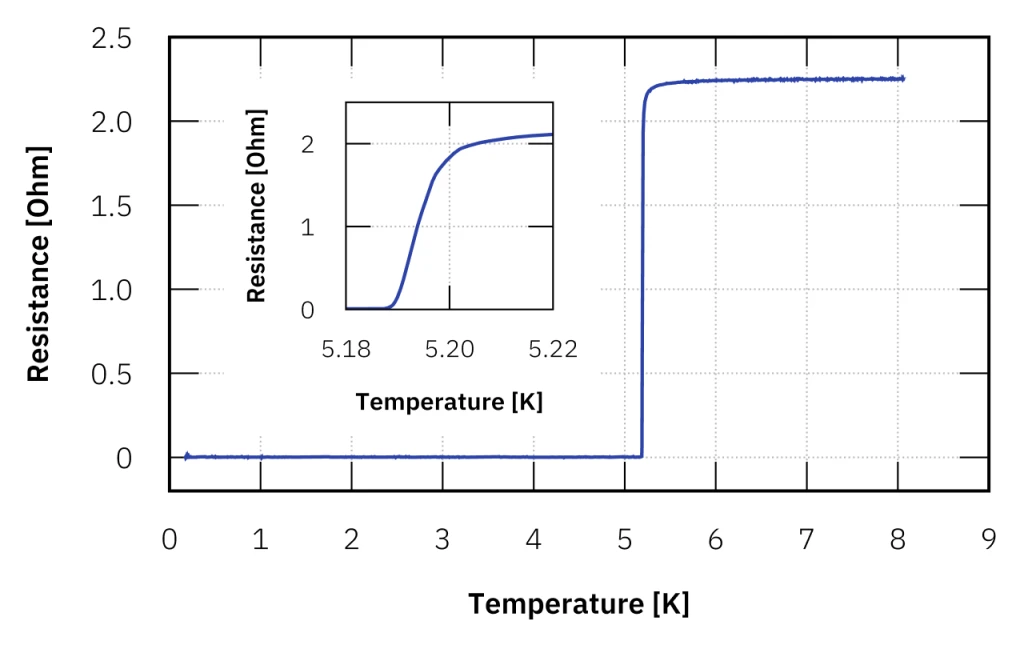

To obtain an R–T curve, the sample is cooled to the lowest temperature setpoint, followed by a temperature sweep up to the highest setpoint. To determine the resistance of a sample, we use an AC lock-in technique. The lock-in amplifier allows precise resistance measurements even at very low signal levels, by referencing all signals to a fixed excitation frequency. This ensures that only voltage responses at the excitation frequency contribute to the measurement, improving the signal-to-noise ratio.

For each measurement, we will suggest an appropriate excitation current and frequency based on the estimated resistance value and application. The current is generated using the voltage excitation provided by the lock-in amplifier and a dedicated bias resistor. For multiple measurement channels, the excitation can be configured individually for each channel. As both the bias resistor and the sample are connected in series, the measurement current can vary depending on the sample resistance. Therefore, the return current is measured for all channels individually, ensuring a correct resistance value that accounts for the sample's resistance.

The resistance of the sample can be determined using either a two-point or a four-point measurement. Our standard setup employs the four-point method, as it provides more accurate results by eliminating the influence of lead and contact resistances. The differences in setup and evaluation between the two methods are outlined below.

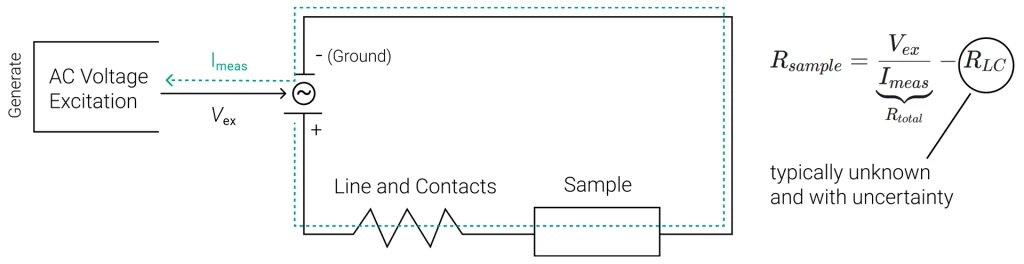

2-point measurement

In a standard two-point measurement, a voltage is applied to a sample, and the current flow is measured using the same lines and device, typically a source measure unit (SMU). The resulting resistance therefore includes contributions both from leads and contacts, as well as from the sample. This method only requires two contacts on a sample but is less accurate than a four-point measurement, especially for low-resistance samples. This type of measurement is typically used for simple devices such as transistors or diodes, where the general characteristics of a device are investigated, rather than the specific resistance.

4-point measurement

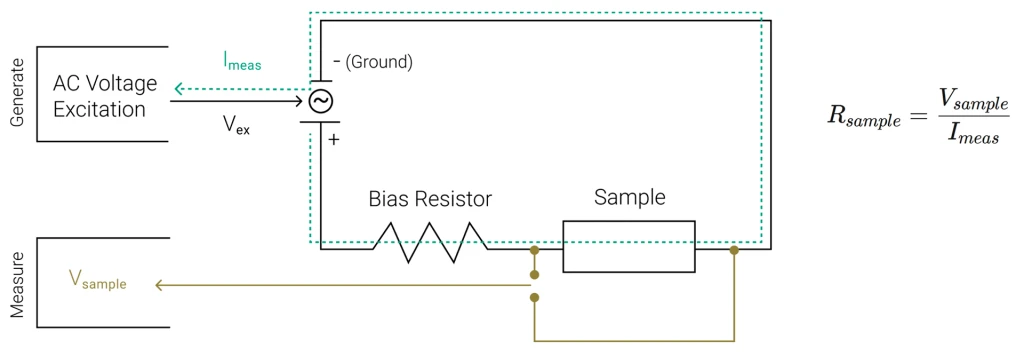

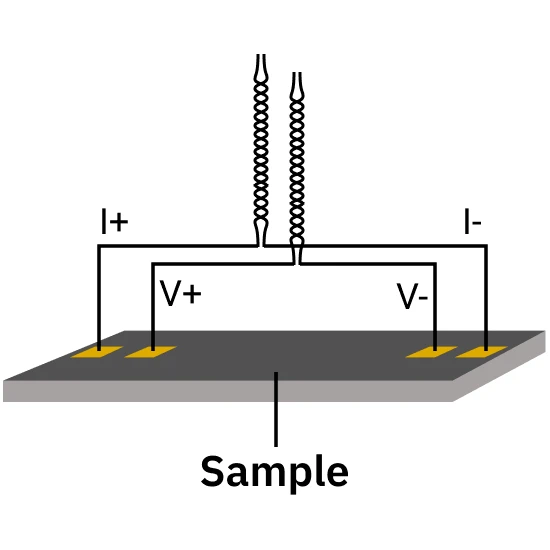

In contrast, in a four-point measurement, the voltage drop across the sample is measured using two separate voltage leads connected close to or directly to the sample. This eliminates any contribution from wires or contact resistances, ensuring that the measured voltage reflects only the sample itself. By measuring both the return current and the voltage drop across the sample, the resistance can then be determined much more accurately than in a two-point setup.

Sample carrier and breakout

We offer a range of sample carriers for mounting and contacting samples. Alternatively, we can evaluate the compatibility of customer-provided sample holders or support you in designing custom holders for specific applications.

PAD 32

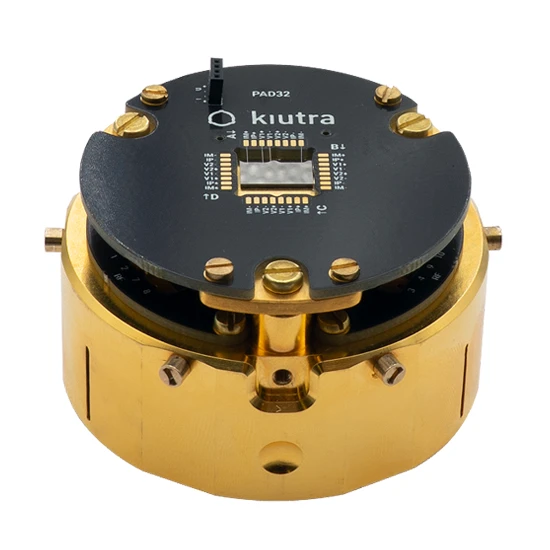

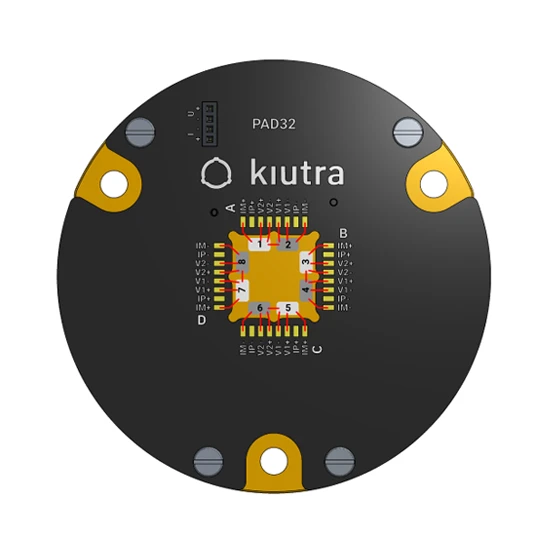

PAD32 is a standard sample carrier featuring 32 gold-plated bonding pads, optimized for four-point electrical measurements. A 10 x 10 mm cutout offers space for up to eight devices that can be attached to a gold-plated, high-purity oxygen-free copper (OFHC) plate. After the measurement, the PAD32 will be returned to the customer for further use.

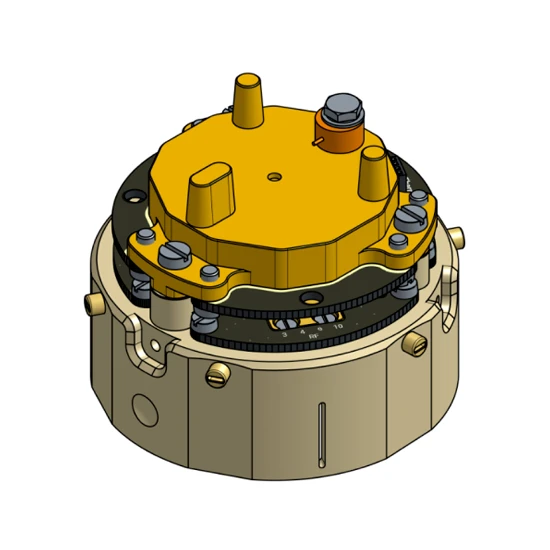

Needle card

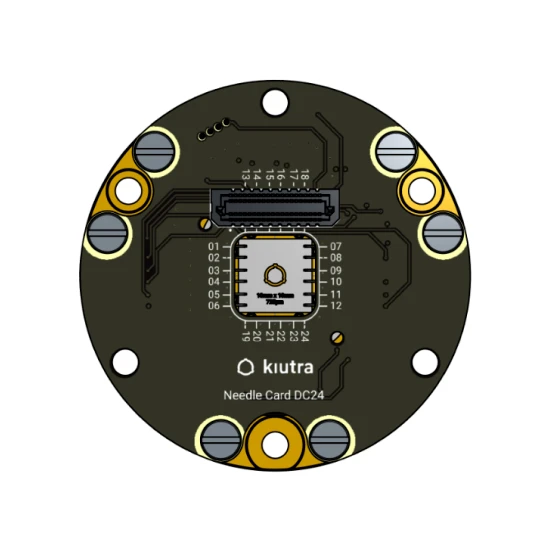

As an alternative to wire bonding, we provide a needle card (probe card) solution for contacting samples, enabling non-destructive testing. The sample must be fabricated in a way that its contact pads align precisely with predefined XY positions of the probe card. We offer a small range of probe card layouts for this. Alternatively, we can build custom probe cards for customer-specific layouts. Electrical connections are established via Tungsten-Rhenium needles with flat 60µm tips that press against the sample pads, enabling a stable connection without bonding.

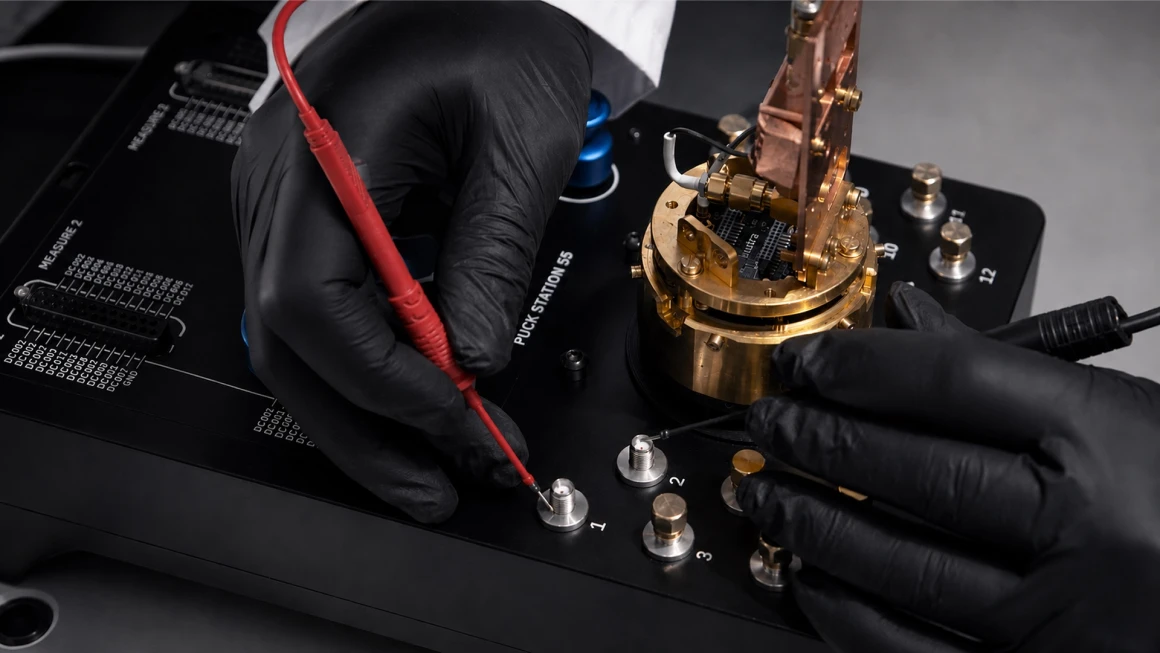

Cryostat interface

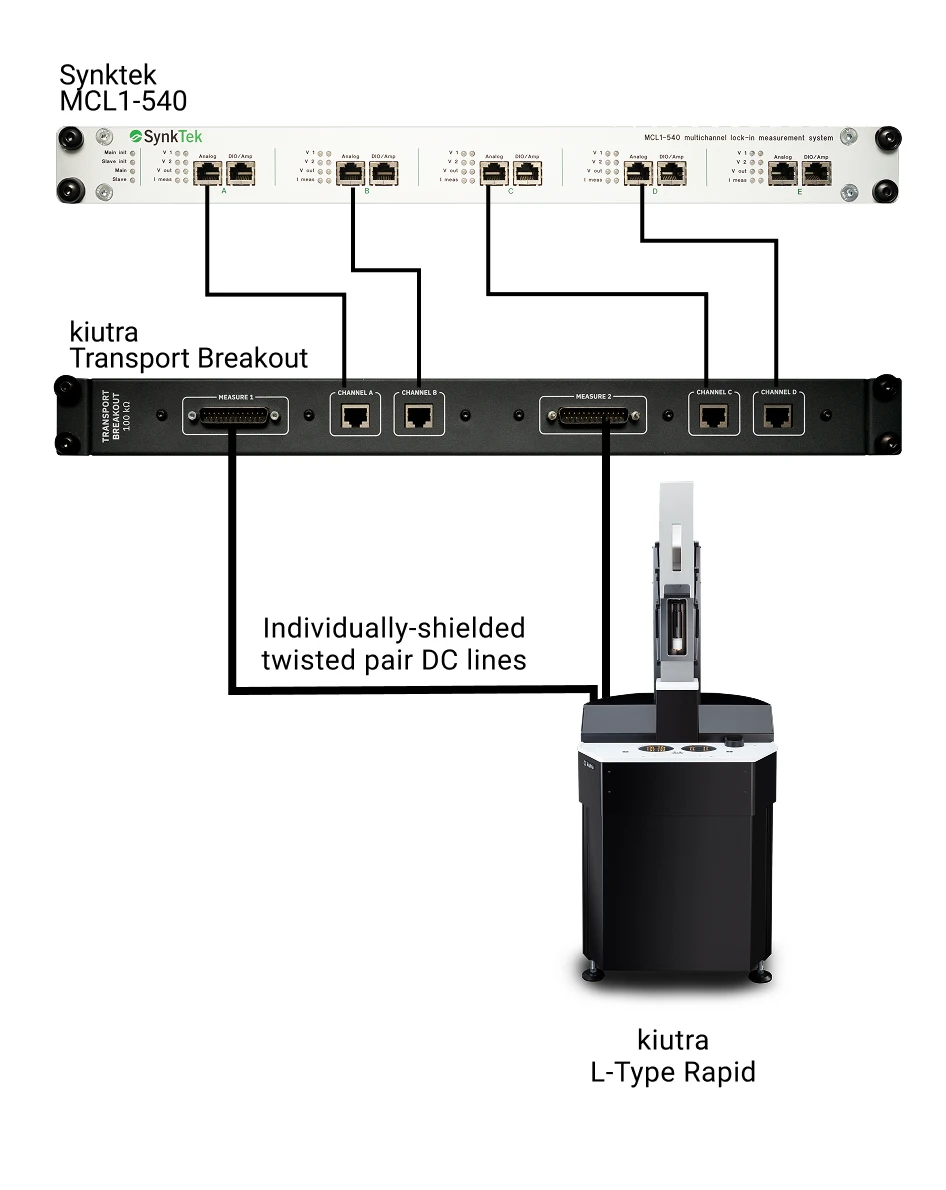

The prepared sample carrier is mounted onto a puck and seamlessly connects with the on-puck DC connectors. When loading the puck into an L-Type Rapid cryostat, the DC lines from the puck automatically mate with the internal twisted-pair wiring. At the top plate, the DC lines are divided into two D-Sub 25 connectors. They are connected via two 24-pin, twisted-pair, double-shielded measurement cables to a dedicated transport breakout box.

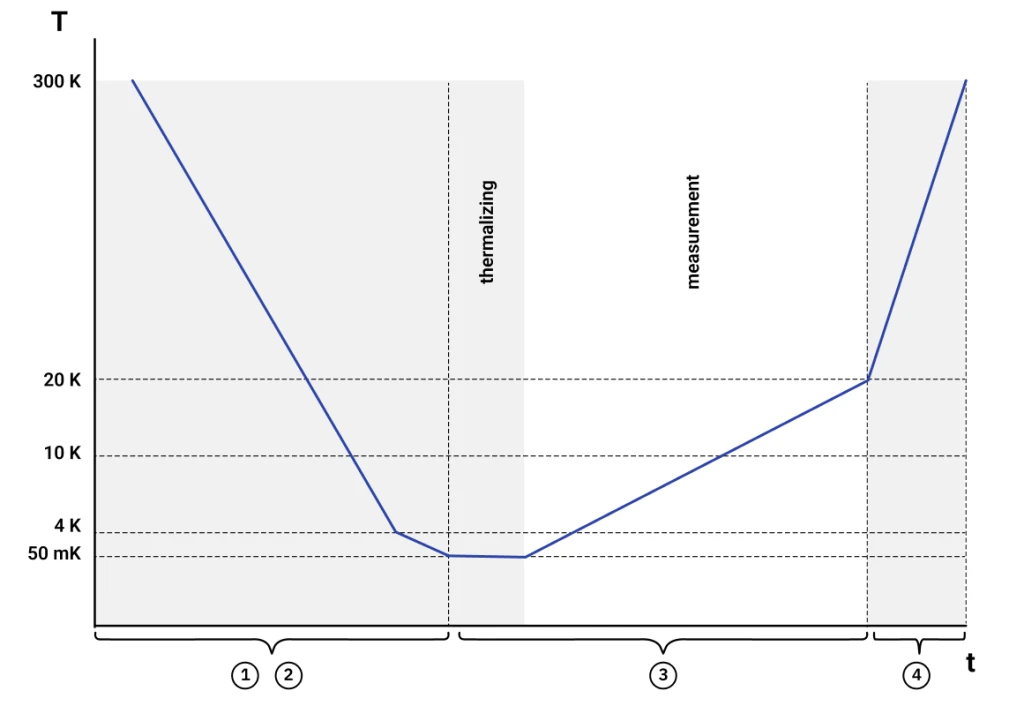

Standard measurement protocol

A waiting time is included after each cooling step to ensure proper thermalization of all components. The standard measurement procedure can be extended to cover broader temperature ranges (50 mK, 40 K or up to 300 K). Additionally, a room-temperature resistivity measurement of the mounted device can be performed outside the cryostat.
